SHORT AND LONG RANGE NIGHT VISION OBSERVATION/VIDEO CAMERA SYSTEM



  GENERAL REQUIREMENTS
The enclosed is a specification for a portable modular night vision surveillance system to perform the following tasks: -
  • To operate in both urban and rural night conditions from twilight to overcast starlight.

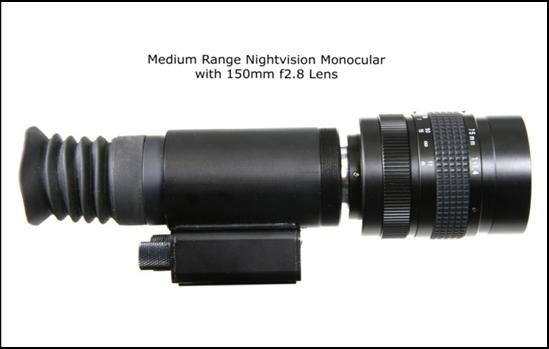

  • To operate as a handheld passive night vision observation device

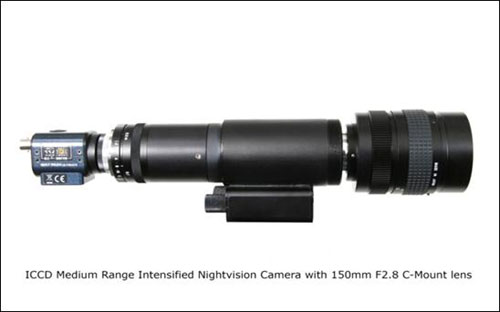

  • For Night Vision operation as a Video Camera System
  • For Night Vision Monitoring with a Digital Hand-Held Sony Walkman VCR
  • To operate in all weather conditions


NIGHT VISION SYSTEM SPECIFICATION
Electrical Specifications: To US Military Specifications Mil-I- 45092D or F

Image Intensifier Performance Specification:
Tube type
Luminous Sensitivity
S/N ratio at 10 minus 4 lux
Limiting Resolution
Brightness Gain
Tube MTTF
Equivalent Background
Illumination (EBI)
Shock (max) (g)
   18mm with AGC
650 µA/lm (eq to US 1690µA/lm)
22.0
64 lp/mm minimum
20.000 minimum to 50.000 max
10000 hours minimum
.
0, 25
45
CCD CAMERA SPECIFICATION
Composite CCIR 1V p-p
Termination
Minimum Resolution		 .
75 ohms
570 TV lines minimum

MECHANICAL SPECIFICATIONS
Overall Length
Maximum Height
Maximum Width
Weight
Construction
Mounting
Input power

Maximum 88mm Inc `C` mount
Maximum 55mm
Maximum 47mm
Maximum 950gms
Aluminum, hard black anodized
STD quarter inch camera tripod
12Vdc max current 220mA



CAMCORDER OPERATION

Recording of the video signal will be direct to a Sony DG1000 Digital Video Recorder/Monitor or similar

SLR OPERATION

To operate with either 35mm digital SLR or digital video cameras (Canon preferred)

OBJECTIVE LENS OPERATION

The system will be supplied with an X55 motorized zoom lens 24-1320mm focal length zoom lens and a 2000mm lens for long range observation exceeding 3klm (compatible with all C mount lens manufacturers). A C mount to bayonet adapter is available for use with 35mm lenses)

LASER ILLUMINATOR

The system can be supplied with a 3 Watt IR illuminator to illuminate the center 30% of the picture

CAMERA ACCESSORIES

The system will be delivered with all cables, connectors and batteries for complete operation.

PAN & TILT SYSTEM

The system can be supplied with a 24Vdc pan and tilt unit to be controlled by the operator
adjacent to the camera. He will also have full control of the lens zoom and focus

GUARANTEE

The camera shall carry a 1-year warranty.

DOCUMENTATION

The following documentation shall accompany each system: -

Schematic and instruction manuals for: -
Camera operation
Camcorder operation
Zoom laser operation
Pan and Tilt operation
